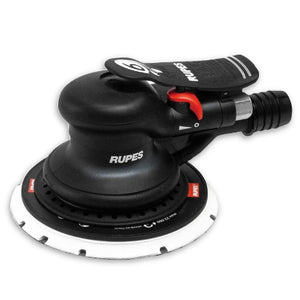

RUPES Skorpio III 6" Vacuum-Ready Sander, 3mm Random Orbit, RH353A
Product Overview:
RUPES Skorpio III (RH353A) 6" Pneumatic Air Sander features a 3mm (1/8") random orbit perfectly suited for fine finishing tasks, grip multi-hole backup pad for use with 6" grip (Velcro) sanding discs and vacuum port for use with external dust extraction systems.
Experience excellence, the RUPES Skorpio III is what every random orbital sander operator needs, an extremely quiet tool that has tremendous power and low vibration. The newly designed pneumatic Skorpio III is the quietest random orbital sander in its class.
The body is coated with an anti-slip rubber for better handling, the throttle lever is designed to support the operator’s wrist during operation and actually fits perfectly into the tool body to eliminate “pinch points”, the internal balancing of the components results in extremely low vibration and the double row bearings insure greater life and smoother operation.
The internal components of the Skorpio III are so well balanced that operators can actually change the size of the backing pad without compromising the low vibration level of the tool. It is now possible to choose the backing pad diameter that you need 5" (125mm) or 6" (150mm), without changing tools!
Bundle with an additional backup pad for more versatile shop sanding operations. Pair with RUPES #9GAT02002/AS or #9GAT2004/AS Anti-static Coaxial Air / Vacuum Hose for ultimate performance.
Video:
Features and Benefits:
New Heavy Duty Motor The new high performance motor built in sintered steel is designed to provide the best power to weight ratio with a lower air consumption. Designed to minimize tool noise and lower vibration level, the new motor reduces internal friction for a higher power transfer ratio, simplified maintenance and longer tool life. |
|
Double Row Ball Bearings A new double-row ball bearing system, designed specifically by the RUPES Research and Development team, results in longer bearing life, greater motor stability and lower vibration levels. |
|
Anti Spinning System The presence of the rubber shroud prevents the tool from operating in free rotation mode. This eliminates the risk of damage to the work surface from a true rotary motion. Further, the shroud allows for more efficient dust extraction by sealing the area between the tool housing and the backup pad. |
|
Extremely Well Balanced RUPES Research and Development team dedicated significant time and effort to create a tool whose internal components are perfectly balanced. The result is a tool that is very low in vibration and ideal for high time-exposure operations. |
|
Ergonomic Design The body is coated with an anti-slip rubber for better handling, the throttle lever is designed to support the operator’s wrist during operation for perfect fit into the tool body to eliminate pinch points, the internal balancing of the components double row bearings results in extremely low vibration and smoother operation. |
|
Interchangeable Backing Pad The internal components of the Skorpio III are so well balanced that operators can actually change the size of the backing pad without compromising the low vibration level of the tool. It is now possible to choose the backing pad diameter that you need, 5" (125mm) or 6" (150mm), without changing tools! |
|
Central Vacuum Models Skorpio III is available in three different models configured for external dust extraction systems, 3mm, 6mm and 9mm random orbits (RH353A, RH356A, RH359A). |
Technical Specs:
- Supplied with 6" (150mm) Velcro (grip), multi-hole, slim style M8 backup pad (#981.500)
- Other compatible backup pads (sold separately):
- 5" (125mm) Velcro (grip), 8+8+1 hole design M8 backup pad (#980.015N)
- 6" (150mm) smooth Vinyl face (for PSA discs), multi-hole M8 backup pad (#981.145N)
- Compatible Hose Assembly (Sold Separately):
- 9GAT02004/AS; 16.4' (5M) length, 29mm (1.14") connection anti-static coaxial air/vacuum hose
- 9GAT02002/AS; 26.25' (8M) length, 29mm (1.14") connection anti-static coaxial air/vacuum hose
- Backup Pad Connection: M8, female
- Dust Extraction: Yes, vacuum-ready port for use with external dust extraction
- Orbit: 3mm (1/8"), random
- Weight: 1.76lb (0.8kg)
- Working Pressure: 6.2 bar / 9 PSIG
- Air Consumption Max: 340 L/min
- Speed Control: Yes
- Air Inlet Thread: 0.25" Gas
SKORPIO III Orbit Options:
3mm, RH353A | 6mm, RH356A | 9mm, RH359A |
The 3mm orbit is designed for finishing applications with 320 grit and finer abrasives; small orbit combined with high rpm and quality abrasives delivers a high quality finish that is perfectly prepared for paint and coatings | The most popular SKORPIO III, the 6mm orbit features a 20% increase in time efficiency than 5mm random orbit sanders yet still results in the same high quality surface finish when used with medium grit abrasives | The 9mm orbit tool is designed primarily for roughing and material removal applications when used with abrasives between 36 and 120 grit; this tool is aggressive but light in weight and ergonomically designed |
